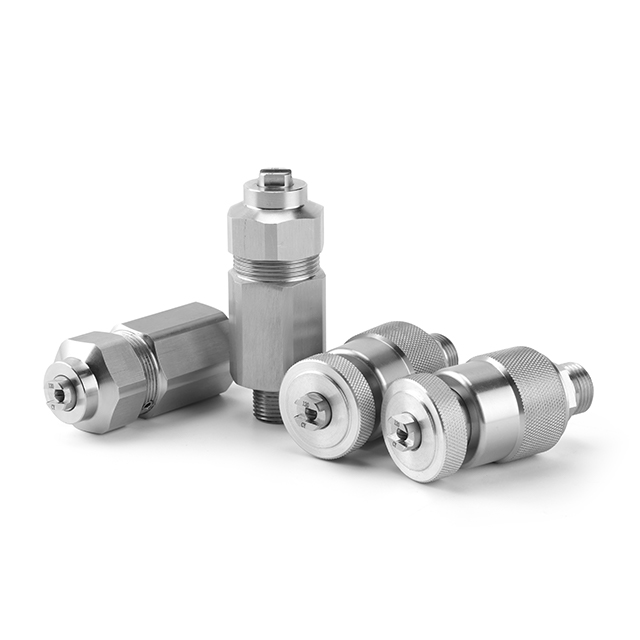

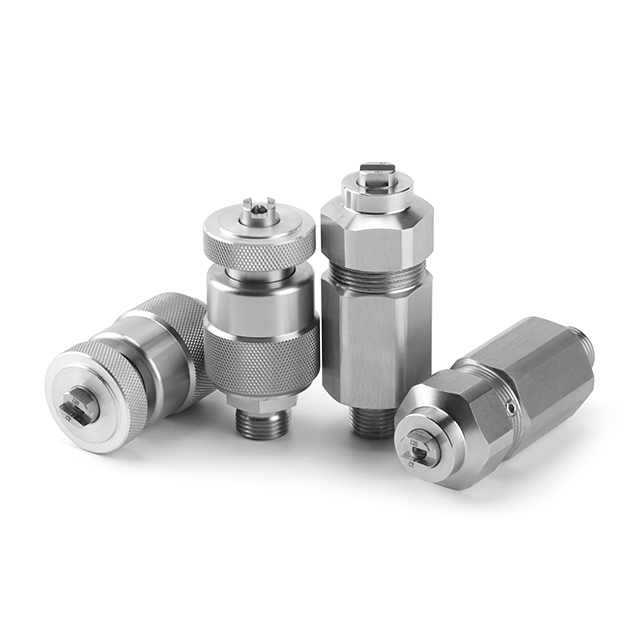

The precision nozzle assembly serves as the critical interface for superior atomization in demanding surface finishing environments. Specifically optimized for the CYLT-002 and CYLT-003 split-head architecture, this component guarantees a meticulously uniform spray pattern that directly translates into maximum compound saving. When handling dense, abrasive polishing liquids, standard nozzles quickly degrade, leading to erratic spray shapes, uneven workpiece coating, and excessive material consumption.
By integrating advanced fluid dynamics engineering, this assembly maintains absolute structural integrity under intense operational stress. Operators will notice a distinct reduction in liquid splatter and a smooth, controlled acoustic hiss during application, indicating a perfectly balanced air-to-fluid ratio. Every unit undergoes rigorous dynamic testing to ensure that over continuous, high-frequency production cycles lasting beyond six months, the atomization effect remains exceptionally stable. This translates to fewer manual adjustments on the production line, less downtime for cleaning, and a highly predictable consumable expenditure for large-scale manufacturing facilities seeking to optimize their finishing operations.
Precision Spray Geometry
Engineered to deliver a highly stable, wide-angle fan pattern, this geometry ensures the abrasive fluid covers the buffing wheel perfectly from edge to edge. Instead of a concentrated, wasteful center stream that splatters off the wheel, the fluid is dispersed in a fine, mist-like veil that adheres instantly to the rotating fibers. This precise distribution drastically reduces overspray, prevents messy workspace accumulation, and ensures every drop of polishing compound is utilized effectively on the target surface, ultimately driving down daily operational costs. The visual result is a perfectly saturated buffing wheel that delivers a consistent cut and color to the metal surface, eliminating dry spots and uneven wear on the polishing pads.
94.5 HRA Tungsten Core
The internal orifice is meticulously lined with ultra-hard 94.5 HRA Tungsten Carbide, providing an unyielding barrier against severe abrasive erosion. Unlike standard steel components that score, widen, and lose their shape over time, this exceptionally dense core retains its exact micro-dimensions even under extreme friction. The heavy, solid construction of the tungsten insert guarantees the spray pattern and volumetric flow remain strictly consistent for a minimum of 6+ months of continuous operation. This exceptional wear resistance eliminates the need for frequent replacement, recalibration, and the associated production bottlenecks. Facility managers can rely on this predictable longevity to schedule maintenance efficiently, knowing the atomization quality will not degrade unexpectedly mid-shift.
Split-System Seamless Fit
Featuring a compact, heavily reinforced design specifically tailored for the remote heads of the CYLT-002 and CYLT-003 series, this assembly locks in with a satisfying, airtight mechanical seal. It flawlessly maintains 26:1 pressure integrity without micro-leaks or sudden pressure drops, even when handling the thickest polishing slurries. The precision-machined threads ensure immediate, tactile alignment during installation, securing the fluid pathway against the intense, continuous vibrations typical in automated finishing environments. This exact fitment prevents air ingress, ensuring the fluid delivery remains uninterrupted and perfectly pressurized from the tank to the workpiece. The secure connection also protects internal mechanisms from external contamination, extending the overall lifespan of the entire spray apparatus.
Anti-Clogging Flow Architecture
The internal fluid channels feature a specialized smooth-bore architecture designed to accelerate fluid velocity and prevent the accumulation of high-viscosity polishing liquids. By minimizing internal friction and eliminating dead zones where heavy particulates typically settle and harden, this design significantly reduces the frequency of routine maintenance. Operators spend less time disassembling and clearing obstructions, and more time keeping the production line running at peak efficiency. The streamlined flow path ensures that even heavily pigmented or densely particulate-laden compounds pass through the orifice cleanly, maintaining a consistent application rate shift after shift. This focus on internal cleanliness directly contributes to a more reliable, hands-off automated process.
These integrated features work in unison to transform a standard finishing process into a highly controlled, efficient, and predictable operation, safeguarding both material resources and equipment longevity.
Compatibility: CYLT-002 & CYLT-003 automatic split-head systems, engineered for exact dimensional matching, rapid deployment, and immediate integration into existing finishing lines.
Core Material: 94.5 HRA Tungsten Carbide, selected for its extreme density, thermal stability, and unmatched resistance to the aggressive liquid abrasives used in metal polishing.
Spray Angle Options: 20° / 40° / 60° / 90° / 120° full matrix availability, providing the exact coverage required for varying buffing wheel widths, complex contoured workpieces, and specialized surface treatments.
Service Life: Minimum 6-month consistent performance under continuous, heavy-duty industrial cycles, ensuring predictable maintenance schedules and reliable daily output.
Selecting the correct specification from our comprehensive matrix ensures that your automated finishing equipment operates at its maximum potential. The precise alignment of the 94.5 HRA Tungsten Carbide core with the selected spray angle dictates the exact fluid delivery rate, directly impacting the final surface finish of the workpiece. Whether targeting narrow, intricate profiles with a focused 20-degree stream or broadcasting compound across massive buffing drums with a wide 120-degree dispersion, these specific parameters guarantee reliable, repeatable performance. Procurement teams and facility engineers can depend on these exact specifications to standardize their finishing processes, reduce material waste, and achieve a consistent, flawless polish across thousands of production cycles without unexpected variations in fluid dynamics.
This precision nozzle assembly is the definitive solution for high-volume manufacturing sectors requiring exacting surface treatment standards. In automotive manufacturing, it ensures the flawless application of polishing compounds on alloy wheels, exhaust components, and decorative trim, leaving a brilliant, mirror-like finish entirely free of micro-scratches or dull spots. For the 3C electronics industry, controlled atomization is crucial for finishing delicate metallic casings, smartphone frames, and tablet enclosures where material waste must be strictly minimized and surface uniformity is paramount. Additionally, hardware and sanitary ware production lines benefit immensely from the consistent, wide-angle coverage, allowing for the rapid, automated polishing of complex geometries, brass faucets, and stainless steel fixtures. By integrating this specialized component into their automated systems, facility managers can achieve a significantly higher yield rate, drastically reduce consumable expenditures, and maintain a cleaner, more efficient production environment that meets the strictest aesthetic requirements.
