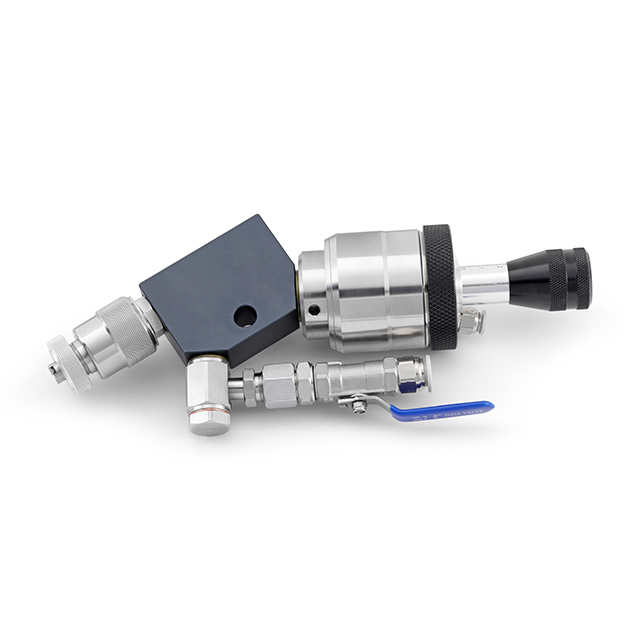

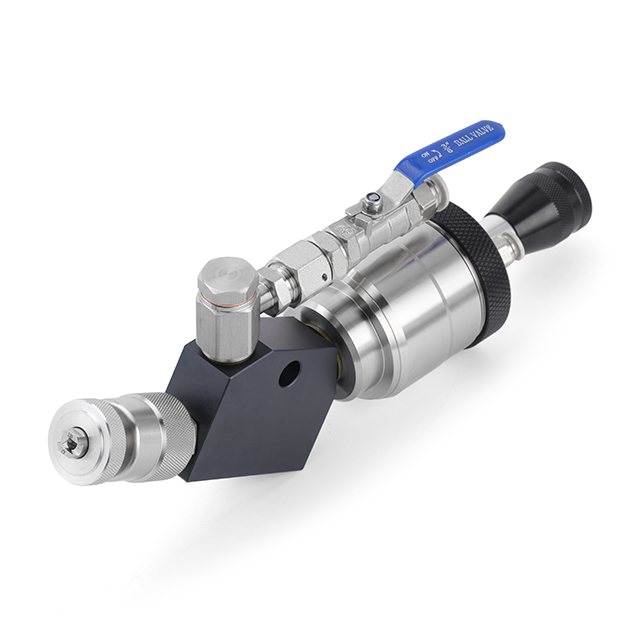

CYLT-002 Split-System Automatic Spray Gun for Restricted Spaces

1.Product Introduction

The CYLT-002 is the definitive solution for complex machinery layouts. By decoupling the gun body from the spray head, it allows for high-performance waxing in cramped internal zones where integrated guns fail to fit. Engineered specifically to tackle high-viscosity polishing emulsions and delicate water-based coatings, the system ensures a perfectly uniform, drip-free atomization process. You will notice the immediate difference in the exceptionally smooth, controlled mist that coats complex internal geometries without pooling or sputtering. Whether upgrading an existing polishing line or designing a highly compact new cell, this split architecture minimizes structural interference while maximizing fluid delivery precision.

2. Engineering Breakthroughs

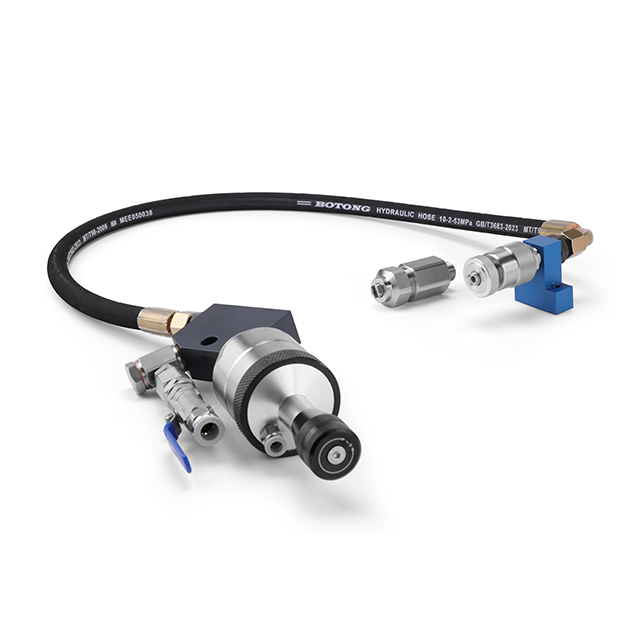

• Split-Body Architecture
  The nozzle head can be mounted independently in gaps as small as 15mm, while the main cylinder is positioned remotely. This physical separation eliminates bulk at the application point. The modular remote head features a quick-detach mechanism that transforms routine maintenance. Operators can perform rapid solvent flushing and module swaps in minutes, drastically reducing equipment downtime and keeping your production lines moving with rhythmic efficiency.

• 360° Adaptive Orientation
  Lightweight head design allows for multi-angle installation, perfect for the complex curves of sanitary ware and automotive hardware. The tactile, precision-machined mounting brackets integrate effortlessly with standard automated robotic arm interfaces. This universal compatibility means the ultra-lightweight head maneuvers through sharp bends and tight recesses without straining the robotic joints, ensuring consistent coverage on intricate metallic surfaces.

• High-Pressure Integrity

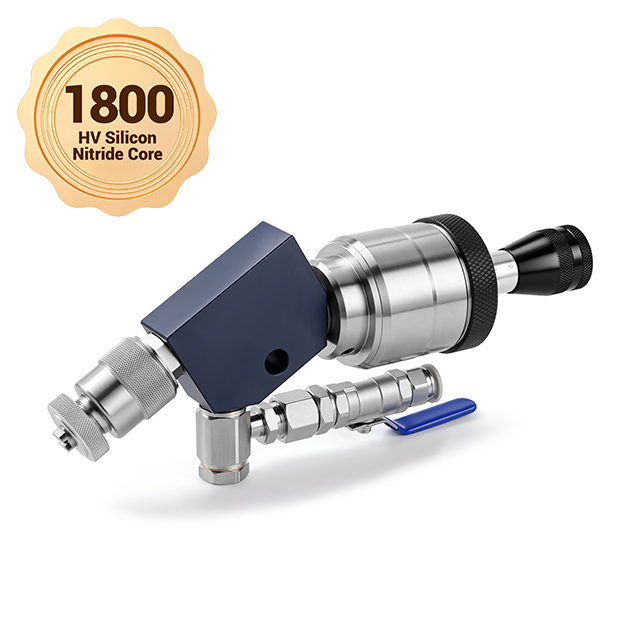

  Optimized high-pressure tubing ensures a 26:1 pressure ratio is delivered directly to the nozzle without energy loss. At the heart of this system lies an incredibly resilient 1800HV Silicon Nitride Core, subjected to punishing factory stress tests before deployment. It withstands the abrasive nature of heavy polishing compounds under severe pressure, guaranteeing a long, fault-free operational lifespan in the most hostile environments.

3. Technical Specifications

Every parameter of the CYLT-002 has been rigorously calibrated to maintain structural integrity and fluid consistency under heavy industrial demands. The precise 26:1 pressure ratio ensures that even the thickest polishing emulsions are pushed through the system with zero hesitation or pulsation. By utilizing the ultra-hard 1800HV Silicon Nitride Core, internal wear is minimized, preventing the gradual degradation of spray patterns that plagues lesser equipment. The distinct weight distribution—a mere 0.4 KG at the active head—dramatically reduces the payload burden on your automated positioning systems, allowing for faster travel speeds and more agile directional changes during continuous operation.

4. Target Applications

• Internal Corner Polishing: Sinks, cookware interiors, and faucet valves. Real-world implementation in leading sanitary ware facilities has demonstrated a remarkable improvement in internal finish consistency. When treating the deep, shadowed curves of brass faucet valves and stainless steel sink basins, the compact head navigates the blind spots effortlessly. Production data from recent integrations shows a significant drop in manual touch-up requirements, as the atomized emulsion reaches every microscopic crevice with uniform density.

• Restricted Machine Retrofitting: Adding automation to existing lines with limited structural clearance. Many legacy manufacturing floors struggle with physical space constraints when attempting to modernize. The CYLT-002 acts as a drop-in upgrade for these exact scenarios. In recent automotive hardware retrofits, engineers successfully installed the micro-head into existing polishing cells without altering the heavy machinery layout. This capability to bypass structural roadblocks allows facilities to achieve automated precision without the staggering costs of a complete line redesign.

5. Selection Guide

When 300mm of clearance is unavailable for the CYLT-001, the CYLT-002 provides the necessary flexibility to reach the core of your manufacturing challenge. Choosing the right configuration is critical for maximizing your operational output. Our engineering team provides comprehensive one-on-one line debugging and integration guidance to ensure your new split-system communicates flawlessly with your existing air compressors and robotic controllers. Furthermore, we back this architecture with an explicit industrial-grade warranty and a commitment to rapid spare parts availability. Should you require maintenance kits or replacement nozzles, our streamlined supply chain ensures they arrive swiftly, keeping your production schedule on track.

Looking for even faster maintenance? Discover CYLT-003

6. Technical FAQ & Support

How does the split design affect pressure loss?

A common concern with decoupled systems is the potential drop in fluid velocity. However, the CYLT-002 utilizes optimized, low-friction high-pressure tubing that maintains the 26:1 pressure ratio perfectly from the remote cylinder to the active nozzle. This ensures zero energy loss and a consistently powerful spray impact across all operational phases.

Can the 15mm clearance head maintain spray pattern stability?

Absolutely. Despite its micro-profile, the nozzle head is engineered to deliver highly stable, adjustable patterns ranging from 20° to 120°. The rigid mounting brackets prevent any vibration or deflection during operation, guaranteeing that the atomization remains uniform even when dispensing heavy polishing compounds in extreme continuous-duty cycles.
